Paypal

Parameters for PayPal Payments

Structure redirectPaymentMethodSpecificInput

paymentProductId

840

requiresApproval

boolean

  • true = the payment requires approval before the funds will be captured using the Deliver or Capture endpoint of the API
  • false = the payment does not require approval, and the funds will be captured automatically
redirectionData.returnUrl

The URL that the customer is redirected to after the payment flow has finished.

Example

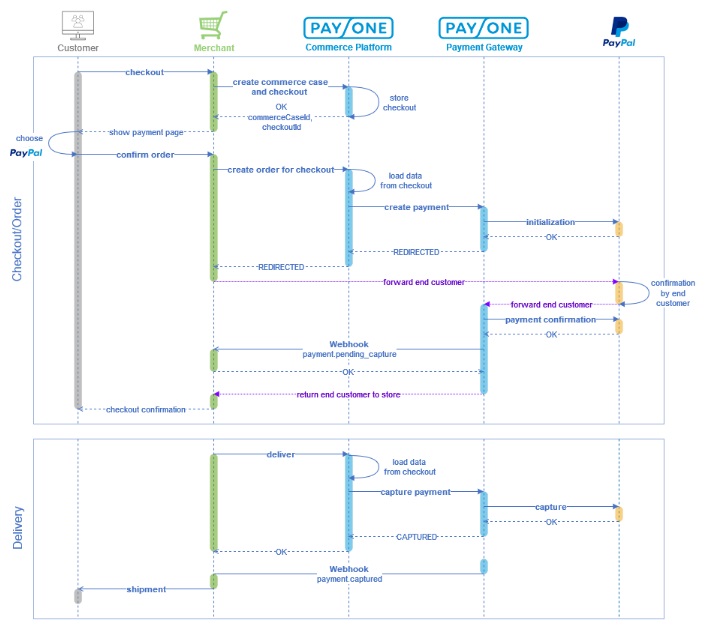

Simple example for a PayPal payment via Commerce Platform

  • Creating a checkout (here in one step, creating in multiple steps possible)
  • Creating an order for the entire checkout (partial orders also possible), payment is initialized automatically
  • Initialization of deliver to capture the amount of the order (partial deliver also possible)

Create CommerceCase/Checkout

Creating a Commerce Case with the initial Checkout including a reference, information about the customer and the items in the shopping cart.

POST Commerce Case
Request
/v1/{merchantId}/commerce-cases
{
    "merchantReference": "commerce-case-paypal-1",
    "customer": {
        "billingAddress": {
            "city": "Musterstadt",
            "countryCode": "DE",
            "houseNumber": "1",
            "street": "Musterstra├če",
            "zip": "12345"
        },
        "merchantCustomerId": "Kunde2345",
        "contactDetails": {
            "emailAddress": "max@mustermann.de",
            "phoneNumber": "+1234567890"
        },
        "personalInformation": {
            "gender": "MALE",
            "name": {
                "firstName": "Max",
                "surname": "Mustermann"
            }
        }
    },
    "checkout": {
        "references": {
            "merchantReference": "paypal-001"
        },
        "shoppingCart": {
            "items": [
                {
                    "invoiceData": {
                        "description": "paypal shirt"
                    },
                    "orderLineDetails": {
                        "productCode": "CBD01",
                        "productPrice": 599,
                        "productType": "GOODS",
                        "quantity": 5,
                        "taxAmount": 19
                    }
                }
            ]
        }
    }
}

Response
{
    "commerceCaseId": "a00b8b25-42d5-486d-8159-e69b3bc2a7e2",
    "checkoutId": "aed6c7f2-507b-4451-88b0-828e4b04f638",
    "shoppingCart": {
        "items": [
            {
                "invoiceData": {
                    "description": "paypal shirt"
                },
                "orderLineDetails": {
                    "id": "fab315b5-90f1-4529-8341-a8afdbc8c7ea",
                    "productCode": "CBD01",
                    "productPrice": 599,
                    "productType": "GOODS",
                    "quantity": 5,
                    "taxAmount": 19
                }
            }
        ]
    }
}

Order with PayPal payment

Creating an order for the entire Checkout with data for a PayPal payment.

POST Order
Request
/v1/{merchantId}/commerce-cases/{commerceCaseId}/checkout/{checkoutId}/order
{
    "orderType": "FULL",
    "orderReferences": {
        "descriptor": "PayPal payment",
        "merchantReference": "Order-2234521243"
    },
    "paymentMethodSpecificInput": {
        "redirectPaymentMethodSpecificInput": {
            "requiresApproval": true,
            "paymentProductId": 840,
            "redirectionData": {
                "returnUrl": "returl.url"
            }
        },
        "paymentChannel": "ECOMMERCE"
    }
}

Response
{
    "createPaymentResponse": {
        "merchantAction": {
            "actionType": "REDIRECT",
            "redirectData": {
                "redirectURL": "https://www.sandbox.paypal.com/cgi-bin/webscr?cmd=_express-checkout&token=EC-4VS8792220190983C"
            }
        },
        "payment": {
            "paymentOutput": {
                "amountOfMoney": {
                    "amount": 2995,
                    "currencyCode": "EUR"
                },
                "references": {
                    "merchantReference": "Order-2234521243"
                },
                "paymentMethod": "redirect",
                "redirectPaymentMethodSpecificOutput": {
                    "paymentProductId": 840
                }
            },
            "status": "REDIRECTED",
            "statusOutput": {
                "isCancellable": false,
                "statusCategory": "PENDING_PAYMENT",
                "isAuthorized": false,
                "isRefundable": false
            },
            "id": "PP2AAD9QHE48KG0E"
        },
        "paymentExecutionId": "c9b1bd7a-fd43-4ace-aeae-3f01a3622f19"
    },
    "shoppingCart": {
        "items": [
            {
                "invoiceData": {
                    "description": "paypal shirt"
                },
                "orderLineDetails": {
                    "id": "fab315b5-90f1-4529-8341-a8afdbc8c7ea",
                    "productCode": "CBD01",
                    "productPrice": 599,
                    "productType": "GOODS",
                    "quantity": 5,
                    "taxAmount": 19,
                    "status": [
                        {
                            "lineItemStatus": "WAITING_FOR_PAYMENT",
                            "quantity": 5
                        }
                    ]
                }
            }
        ]
    }
}

Webhook after successful confirmation on PayPal portal by end customer

You can identify the corresponding transaction by the field createPaymentResponse.payment.id in the order response. The status PENDING_CAPTURE shows that the amount is authorized and the payment gateway is waiting for a capture.

Webhook
{
    "apiVersion": "v1",
    "created": "2023-11-15T09:54:18.097694888+00:00",
    "id": "88ec52d6-bd59-47bf-b21e-147508d85b02",
    "merchantId": "P1_18323_2013224",
    "payment": {
        "paymentOutput": {
            "amountOfMoney": {
                "amount": 2995,
                "currencyCode": "EUR"
            },
            "references": {
                "merchantReference": "Order-2234521243"
            },
            "redirectPaymentMethodSpecificOutput": {
                "paymentProductId": 840
            },
            "paymentMethod": "redirect"
        },
        "status": "PENDING_CAPTURE",
        "statusOutput": {
            "isCancellable": true,
            "statusCategory": "PENDING_MERCHANT",
            "isAuthorized": true,
            "isRefundable": false
        },
        "id": "PP2AAD9QHE48KG0E"
    },
    "type": "payment.pending_capture"
}

Deliver

Full Deliver to capture the complete order amount.

POST Deliver
Request
/v1/{merchantId}/commerce-cases/{commerceCaseId}/checkout/{checkoutId}/deliver
{
    "deliverType": "FULL",
    "isFinal": true
}

Response
{
    "capturePaymentResponse": {
        "captureOutput": {
            "amountOfMoney": {
                "amount": 2995,
                "currencyCode": "EUR"
            },
            "references": {
                "merchantReference": "Order-2234521243"
            },
            "paymentMethod": "redirect"
        },
        "status": "CAPTURED",
        "id": "PP2AAD9QHE48KG0E"
    },
    "shoppingCart": {
        "items": [
            {
                "invoiceData": {
                    "description": "paypal shirt"
                },
                "orderLineDetails": {
                    "id": "fab315b5-90f1-4529-8341-a8afdbc8c7ea",
                    "productCode": "CBD01",
                    "productPrice": 599,
                    "productType": "GOODS",
                    "quantity": 5,
                    "taxAmount": 19,
                    "status": [
                        {
                            "lineItemStatus": "DELIVERED",
                            "quantity": 5
                        }
                    ]
                }
            }
        ]
    }
}

Webhook after successful Deliver

The payment gateway informs you via webhook about the successful capture.

Webhook
{
    "apiVersion": "v1",
    "created": "2023-11-14T17:25:17.996829148+00:00",
    "id": "74e4fe0e-ee75-4c02-9b80-a3e3df8140d4",
    "merchantId": "P1_18323_2013224",
    "payment": {
        "paymentOutput": {
            "amountOfMoney": {
                "amount": 1998,
                "currencyCode": "EUR"
            },
            "references": {
                "merchantReference": "Order-1234521244"
            },
            "redirectPaymentMethodSpecificOutput": {
                "paymentProductId": 990
            },
            "paymentMethod": "redirect"
        },
        "status": "CAPTURED",
        "statusOutput": {
            "isCancellable": false,
            "statusCategory": "COMPLETED",
            "isAuthorized": true,
            "isRefundable": true
        },
        "id": "PP2AAD9B9UAW8BBD"
    },
    "type": "payment.captured"
}
