Introduction

Wero, a key initiative of the European Payments Initiative (EPI), is an innovative payment solution crafted to address the evolving needs of Europe today and tomorrow. The members of EPI are Europe’s biggest banks and financial institutions.

Wero is designed to become the preferred standard payment solution for European merchants and consumers. Wero offers a secure, user-centric digital wallet.

It simplifies payments to and from customers eligible bank accounts while providing greater transparency and control than ever before, delivering an enhanced and seamless digital payment experience.

This integration guide offers a detailed overview and clear, step-by-step instructions to help developers effortlessly connect the Wero Digital Wallet with their online shops, ensuring smooth and efficient payment processing for users across Europe and beyond.

Overview

Supported countries

The Wero E- and M-Commerce solution is currently available in Belgium and Germany, with plans to expand to France, the Netherlands and Luxembourg soon.

More countries are expected to join the European payment system, which aims to provide a unified alternative to international payment providers.

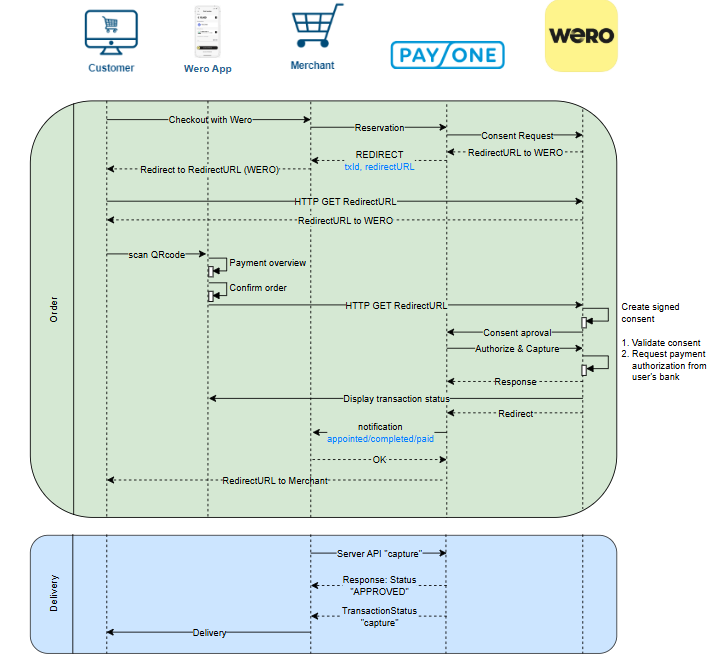

User experience

Paying with WERO will be possible in

  • Online web shop on workstation - Wero Digital App in mobile device
    • QR code displayed in online web shop
    • consumer opens the wero digital app and scans the QR code
    • consumer follows instructions in wero digital app
  • Online web shop on mobile device - Wero Digital App in mobile device
    • QR code + "wero code" is displayed in online web shop on the mobile browser
    • consumer opens the wero digital app and enters the "wero code" displayed on the mobile browser
    • consumer follows instructions in wero digital app

Test Data

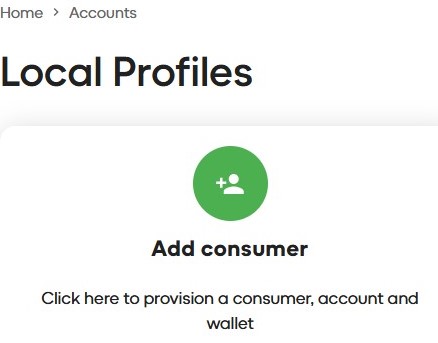

Testing WERO doesn't involve end consumer or test WERO Digital app. To enable completing step required for the consent approval, follow the below steps:

  • Merchant request to Payone API (mode=TEST)
  • Get response with REDIRECT + RedirectURL
  • Redirect the end consumer to the URL
  • WERO landing page with QR code and alternatively alpha-numeric "wero code" displayed

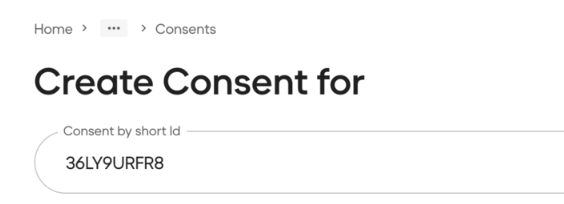

  • Consumer uses this link "Create Consent for"
  • Add the "wero code" from WERO landing page for creating the consent as shown below

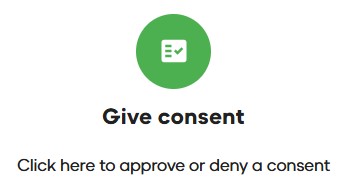

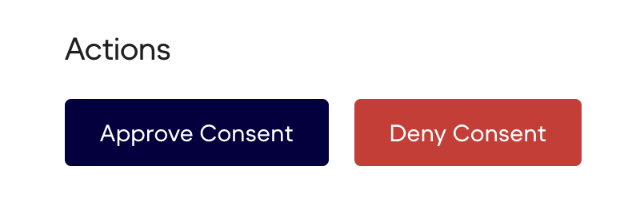

  • Approve or decline consent

Integrations

POST Request - Pre-/ Authorization
Account Parameters
request
required
Fixed Value: preauthorisation/authorization
mid
required
your merchant ID, 5-digit numeric
aid
required
your subaccount ID, 5-digit numeric
portalId
required
your Portal ID, 7-digit numeric
key
required
your key value, alpha-numeric
common Parameters
Permitted Values yes / no

Indicates whether customer is “present” and can enter their data in the shop (=yes). Or customer is not present and can not enter any data (=no).

clearingtype
required
Fixed Value: wlt
mode
required
Fixed Value: test/live

Can be either test environment (test) or live environment (live)
reference
optional
Format CHAR(2..255)

A unique ID that will be displayed in your shop backend and for the customer
amount
required
Format NUMERIC(1..10)
Permitted values max. +/- 19 999 999 99

Specifies the total gross amount of a payment transaction.

Value is given in smallest currency unit, e.g. Cent of Euro.

The amount must be less than or equal to the amount of the corresponding booking.
currency
required
Format LIST
Permitted values ISO 4217 (currencies) 3-letter-codes
Samples

EUR

USD

GBP
param
optional
Format CHAR(1..255)

Individual parameter (per payment process)
narrative_text
optional
Format CHAR(1..81)

Dynamic text element on account statements (3 lines with 27 characters each) and credit card statements.
customer_is_present
optional
Format LIST yes/no
transaction_param
optional
Format CHAR(1..50)
Permitted Symbols [0-9][A-Z][a-z][.-_/]

Optional parameter for merchant information (per payment request)
PERSONAL DATA Parameters
customerid
optional
Format CHAR(1..20)
Permitted Symbols [0-9, a-z, A-Z, .,-,_,/]

Merchant's customer ID, defined by you / merchant to refer to the customer record.

"customerid" can be used to identify a customer record.

If "customerid" is used then stored customer data are loaded automatically.
userid
optional
Format NUMERIC(6..12)

PAYONE User ID, defined by PAYONE
businessrelation
optional
Format LIST
Value Comment
b2c

Indicates business to private customer
b2b

indicates business to business customer (company)

Value specifies business relation between merchant and customer
salutation
optional
Format CHAR(1..10)

The customer's salutation
title
optional
Format CHAR(1..20)
Samples

Dr.

Prof.

Dr.-Ing.

Title of the customer
firstname
optional
Format CHAR(1..50)

First name of customer; optional if company is used, i.e.: you may use "company" or "lastname" or "firstname" plus "lastname"
lastname
required
Format CHAR(2..50)

Last name of customer; optional if company is used, i.e.: you may use "company" or "lastname" or "firstname" plus "lastname"
company
optional
Format CHAR(2..50)

Comany name of customer; optional if company is used, i.e.: you may use "company" or "lastname" or "firstname" plus "lastname"
street
optional
Format CHAR(1..50)

Street number and name (required: at least one character)
addressaddition
optional
Format CHAR(1..50)
Samples

7th floor

c/o Maier

Specifies an additional address line for the invoice address of the customer.
zip
optional
Format CHAR(2..50)
Permitted Symbols [0-9][A-Z][a-z][_.-/ ]

Postcode
city
optional
Format CHAR(2..50)

City of customer
country
required
Format LIST
Permitted values: ISO 3166 2-letter-codes
state
optional
Format LIST
Permitted values: ISO 3166-2 States (regions) 2-letter-codes
Samples US Samples CA
AK AB
AL BC

Specifies state / region of country for the customer.
"state" is required for these countries: US, CA, CN, JP, MX, BR, AR, ID, TH, IN and must not be used for all other countries.
email
optional
Format CHAR(5..254)

Mandatory if "add_paydata[shopping_cart_type]=DIGITAL"

Permitted Symbols RFC 5322

Special Remark email validation:

Max. length for email is 254 characters. Validation is set up in the following way:

Username = Max. 63 characters

Domain Name = Max. 63 characters
Domain Suffixes = Max. 4 suffixes with max. 124 characters
Example: username[63]@domain_name[63].suffix[60].suffix[60].suffix[4]

"@" and "." is counted as a character as well; in case of a total of three suffixes, this would allow a total of 254 characters.

email-address of customer
telephonenumber
optional
Format CHAR(1..30)

Phone number of customer
birthday
optional
Format DATE(8), YYYYMMDD
Samples

20190101

19991231

Date of birth of customer
language
optional
Format LIST
Permitted values ISO 639-1 (Language)2-letter-codes

Language indicator (ISO 639) to specify the language that should be presented to the customer (e.g. for error messages, frontend display).

If the language is not transferred, the browser language will be used. For a non-supported language English will be used.
vatid
optional
Format CHAR(1..50)

VAT identification number. Used for b2b transactions to indicate VAT number of customer.
gender
optional
Format LIST
Permitted values f/ m/  d

Gender of customer (female / male / diverse* )

* currently not in use
personalid
optional
Format CHAR(1..32)
Permitted Symbols [0-9][A-Z][a-z][+-./()]

Person specific numbers or characters, e.g. number of passport / ID card
ip
optional
Format CHAR(1..39)

Customer's IP-V4-address (123.123.123.123) or IP-V6-address
Delivery data Parameters
shipping_firstname
required
Format CHAR(1..50)

First name of delivery address
shipping_lastname
required
Format CHAR(1..50)

Surname of delivery address
shipping_company
optional
Format CHAR(2..50)

Company name of delivery address
shipping_street
optional
Format CHAR(2..50)

Street number and name of delivery address
shipping_zip
required
Format CHAR(2..50)

Postcode of delivery address
shipping_addressaddition
optional
Format CHAR(1..50)

Specifies an additional address line for the delivery address of the customer, e.g. "7th floor", "c/o Maier".
shipping_country
optional
Format LIST
Permitted values ISO 3166 2-letter-codes
Samples

DE

GB

US

Specifies country of address for the customer.

Some countries require additional information in parameter "state"
shipping_state
optional
Format LIST
Permitted values ISO 3166-2 States (regions) 2-letter-codes
Samples US Samples CA
AK BC
AB AR

Specifies state / region of country for the customer.
"state" is required for these countries: US, CA, CN, JP, MX, BR, AR, ID, TH, IN and must not be used for all other countries
Wallet PARAMETERS
wallettype
required
Fixed Value WRO
successurl
required
Format CHAR(2..255)

Scheme <scheme>://<host>/<path>
       <scheme>://<host>/<path>?<query>

scheme-pattern: [a-zA-Z]{1}[a-zA-Z0-9]{1,9}

URL for "payment successful"
errorurl
required
Format CHAR(2..255)

Scheme <scheme>://<host>/<path>
       <scheme>://<host>/<path>?<query>

scheme-pattern: [a-zA-Z]{1}[a-zA-Z0-9]{1,9}

URL for "faulty payment"
backurl
required
Format CHAR(2..255)

Scheme <scheme>://<host>/<path>
       <scheme>://<host>/<path>?<query>

scheme-pattern: [a-zA-Z]{1}[a-zA-Z0-9]{1,9}

URL for "Back" or "Cancel"
Article Parameters
it[n]
optional
it[n] Comments
goods Goods
shipment Shipping Charges
handling Handling fee
voucher Voucher / discount
id[n]
optional
Format CHAR(1..32)
Array elements [n] starting with [1]; serially numbered; max [400]
Permitted Symbols [0-9][a-z][A-Z], .,-,_,/

International Article Number (EAN bzw. GTIN)

Product number, SKU, etc. of this item
pr[n]
optional
Format NUMERIC(10) max. 19 999 999 99
Array elements [n] starting with [1]; serially numbered; max [400]

Unit gross price of the item in smallest unit! e.g. cent
no[n]
optional
Format NUMERIC(6)
Array elements [n] starting with [1]; serially numbered; max [400]

Quantity of this item
de[n]
optional
Format CHAR(1..255)
Array elements [n] starting with [1]; serially numbered; max [400]

Description of this item. Will be printed on documents to customer.
va[n]
optional
Format NUMERIC(4)

VAT rate (% or bp)

Array elements [n] starting with [1]; serially numbered; max [400]
Response Parameters
status
Permitted Values
REDIRECT
ERROR
Response Parameter (approved)
txid
Format NUMERIC(9..12)

The txid specifies the payment process within the PAYONE platform
userid
Format NUMERIC(6..12)

PAYONE User ID, defined by PAYONE
redirecturl
Format CHAR(2..2000)

Redirect URL → Merchant system has to redirect customer to this URL to complete payment
Response Parameter (Error)
errorcode
Format NUMERIC(1..6)

In case of error the PAYONE Platform returns an error code for your internal usage.
errormessage
Format CHAR(1..1024)

In case of error the PAYONE Platform returns an error message for your internal usage.
customermessage
Format CHAR(1..1024)

The customermessage is returned to your system in order to be displayed to the customer.

(Language selection is based on the end customer's language, parameter "language")


Host: api.pay1.de
Content-Type: application/x-www-form-urlencoded
Payload

mid=23456
portalid=12345123
key=abcdefghijklmn123456789
api_version=3.10
mode=test
request=preauthorization
encoding=UTF-8
aid=12345
clearingtype=wlt
wallettype=WRO
reference=Ref123456
amount=300
currency=EUR
lastname=Peeters
country=BE
successurl=http://www.your-success.url
errorurl=http://www.your-error.url
backurl=http://www.your-back.url
RESPONSE

status=REDIRECT
redirecturl=http://www.aliasweropage.com
txid=345678901
userid=123456789
POST Request - Capture
Account Parameters
request
required
Fixed Value: capture
mid
required
your merchant ID, 5-digit numeric
aid
required
your subaccount ID, 5-digit numeric
portalId
required
your Portal ID, 7-digit numeric
key
required
your key value, alpha-numeric
common Parameters
txid
required
Format NUMERIC(9..12)

The txid specifies the payment process within the PAYONE platform
sequencenumber
optional
Format NUMERIC(1..3)
Permitted values 0..127

Sequence number for this transaction within the payment process (1..n), e.g. PreAuthorization: 0, 1. Capture: 1, 2. Capture: 2

Required for multi partial capture (starting with the 2nd capture)
amount
required
Format NUMERIC(1..10)
Permitted values max. +/- 19 999 999 99

Specifies the total gross amount of a payment transaction.

Value is given in smallest currency unit, e.g. Cent of Euro; Pence of Pound sterling; Öre of Swedish krona.

The amount must be less than or equal to the amount of the corresponding booking.
currency
required
Fixed Value EUR
narrative_text
optional
Format CHAR(1..81)

Dynamic text element on account statements (3 lines with 27 characters each) and credit card statements.
Response Parameters
status
Permitted Values
APPROVED
PENDING
ERROR
Response Parameter (approved)
txid
Format NUMERIC(9..12)

The txid specifies the payment process within the PAYONE platform
settleaccount
Format LIST
Value Comment
yes

Settlement of outstanding balances has been carried out.
no

Settlement of outstanding balances has not been carried out.

Provides information about whether a settlement of balances has been carried out. For this payment type the settlement of balances will be always carried out.
Response parameters (pending)
txid
Format NUMERIC(9..12)

The txid specifies the payment process within the PAYONE platform
userid
Format NUMERIC(6..12)

PAYONE User ID, defined by PAYONE
Response parameters (error)
errorcode
Format NUMERIC(1..6)

In case of error the PAYONE Platform returns an error code for your internal usage.
errormessage
Format CHAR(1..1024)

In case of error the PAYONE Platform returns an error message for your internal usage.


Host: api.pay1.de
Content-Type: application/x-www-form-urlencoded
Payload

mid=23456
portalid=12345123
key=abcdefghijklmn123456789
api_version=3.10
mode=test
request=capture
encoding=UTF-8
txid=345678901
amount=300
currency=EUR
RESPONSE

status=APPROVED
txid=345678901
settleaccount=yes
POST Request - Debit
Account Parameters
request
required
Fixed Value: debit
mid
required
your merchant ID, 5-digit numeric
aid
required
your subaccount ID, 5-digit numeric
portalId
required
your Portal ID, 7-digit numeric
key
required
your key value, alpha-numeric
Common Parameters
txid
required
Format NUMERIC(9..12)

The txid specifies the payment process within the PAYONE platform
sequencenumber
required
Format NUMERIC(1..3)
Permitted values 0..127

Sequence number for this transaction within the payment process (1..n), e.g. PreAuthorization: 0, 1. Capture: 1, 2. Capture: 2

Required for multi partial capture (starting with the 2nd capture)
amount
required
Format NUMERIC(1..10)
Permitted values max. +/- 19 999 999 99

Specifies the total gross amount of a payment transaction.

Value is given in smallest currency unit, e.g. Cent of Euro; Pence of Pound sterling; Öre of Swedish krona.

The amount must be less than or equal to the amount of the corresponding booking.
currency
required
Fixed Value EUR
narrative_text
optional
Format CHAR(1..81)

Dynamic text element on account statements (3 lines with 27 characters each) and credit card statements.
clearingtype
optional
Fixed Value wlt
use_customerdata
optional
Format LIST
Value Comment
yes

Uses current account details from debtor's master data (default)
no

Uses the last known account details in the payment process

Use account details from debtor's master data
transaction_param
optional
Format CHAR(1..50)
Permitted Symbols [0-9][A-Z][a-z][.-_/]

Optional parameter for merchant information (per payment request)
Response Parameters
status
Permitted Values
APPROVED
ERROR
Response Parameter (approved)
txid
Format NUMERIC(9..12)

The txid specifies the payment process within the PAYONE platform
settleaccount
Format LIST
Value Comment
yes

Settlement of outstanding balances has been carried out.
no

Settlement of outstanding balances has not been carried out.

Provides information about whether a settlement of balances has been carried out.
Response Parameter (error)
errorcode
Format NUMERIC(1..6)

In case of error the PAYONE Platform returns an error code for your internal usage.
errormessage
Format CHAR(1..1024)

In case of error the PAYONE Platform returns an error message for your internal usage.
customermessage
Format CHAR(1..1024)

The customermessage is returned to your system in order to be displayed to the customer.

(Language selection is based on the end customer's language, parameter "language")


Host: api.pay1.de
Content-Type: application/x-www-form-urlencoded
Payload

mid=23456
portalid=12345123
key=abcdefghijklmn123456789
api_version=3.10
mode=test
request=debit
encoding=UTF-8
txid=345678901
sequencenumber=1
amount=1000
currency=EUR
RESPONSE

status=APPROVED
txid=345678901
settleaccount=yes

Specials

- The combination of firstname and lastname must have at least 3 characters
- Partial Captures are supported but the customers account will be debited with the Preauthorization
- Partial Refunds are supported
- Reversal is not supported

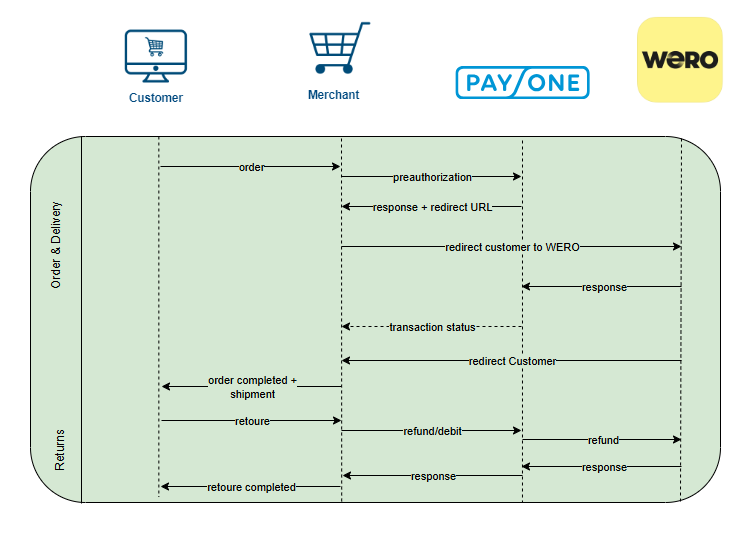

    Sequence Diagrams

    Order & Delivery

    Refund
